Marantzav-receivers

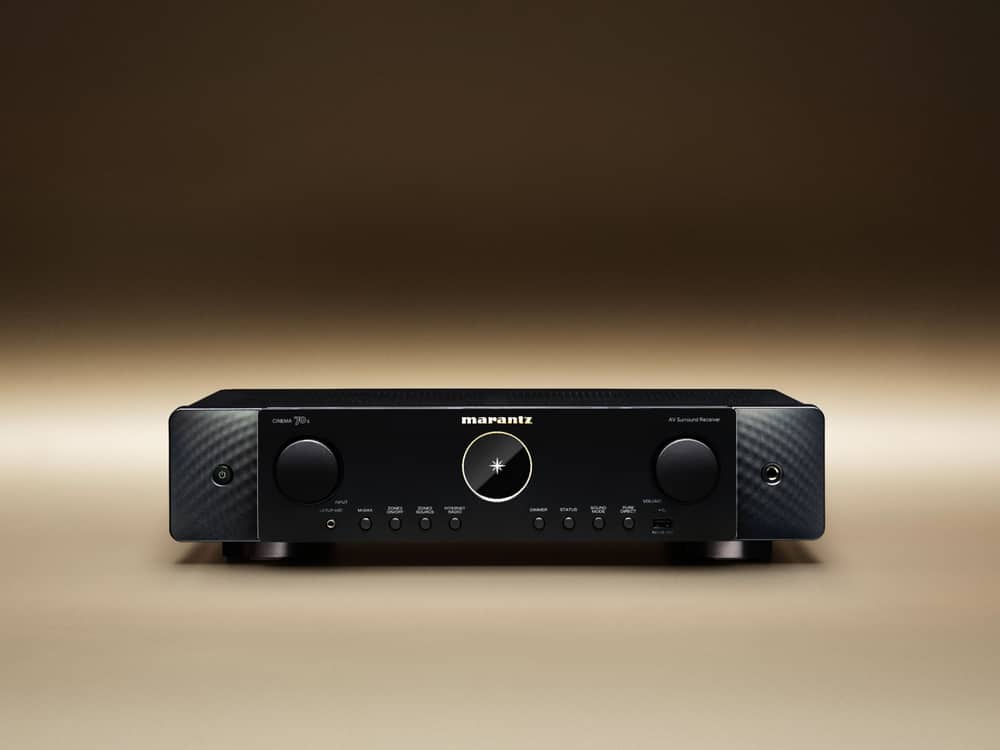

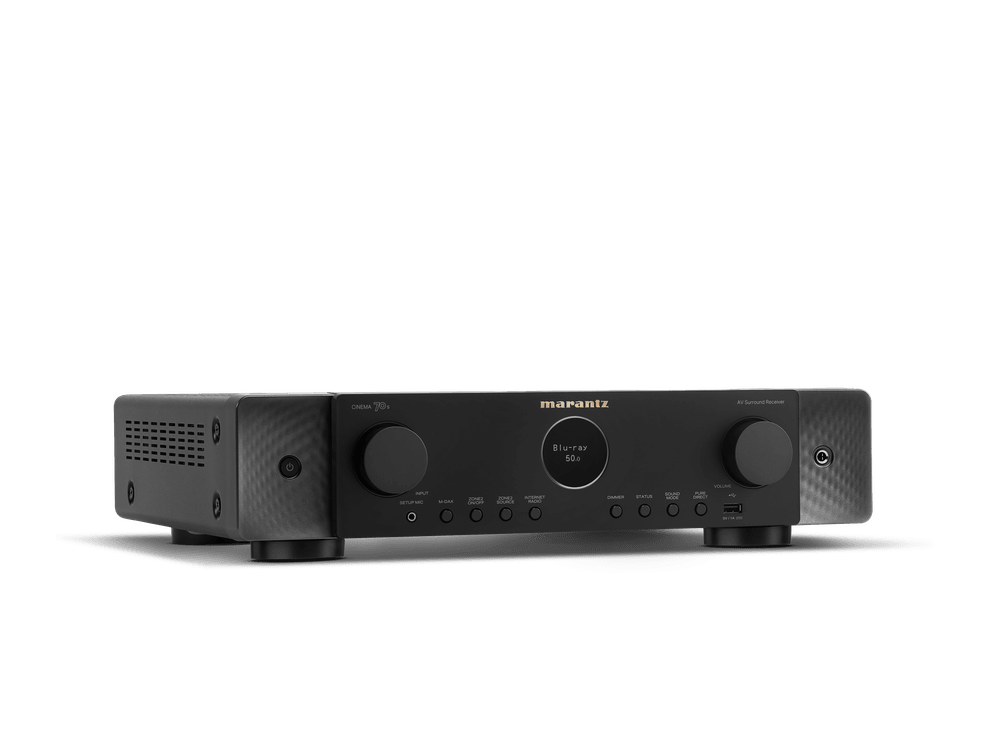

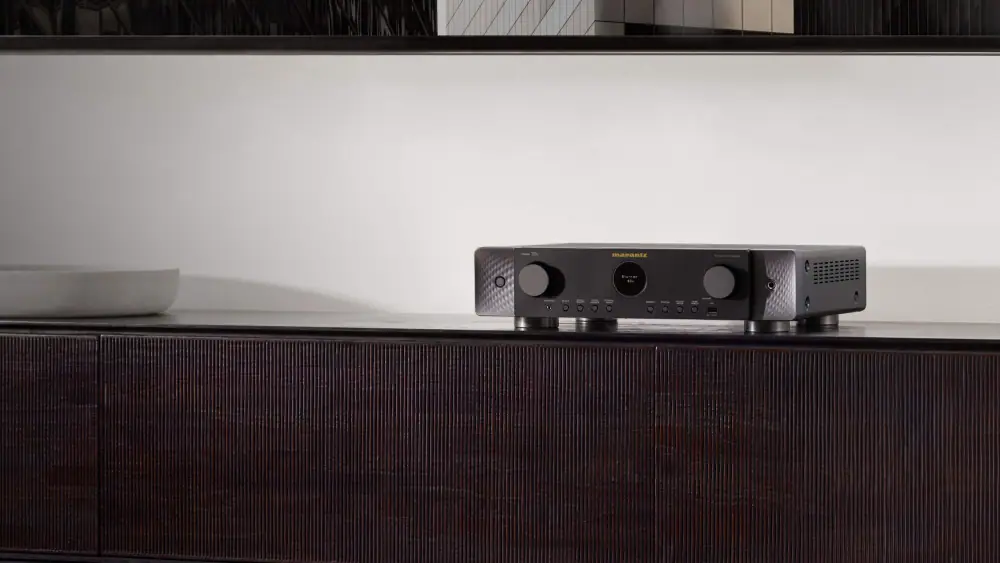

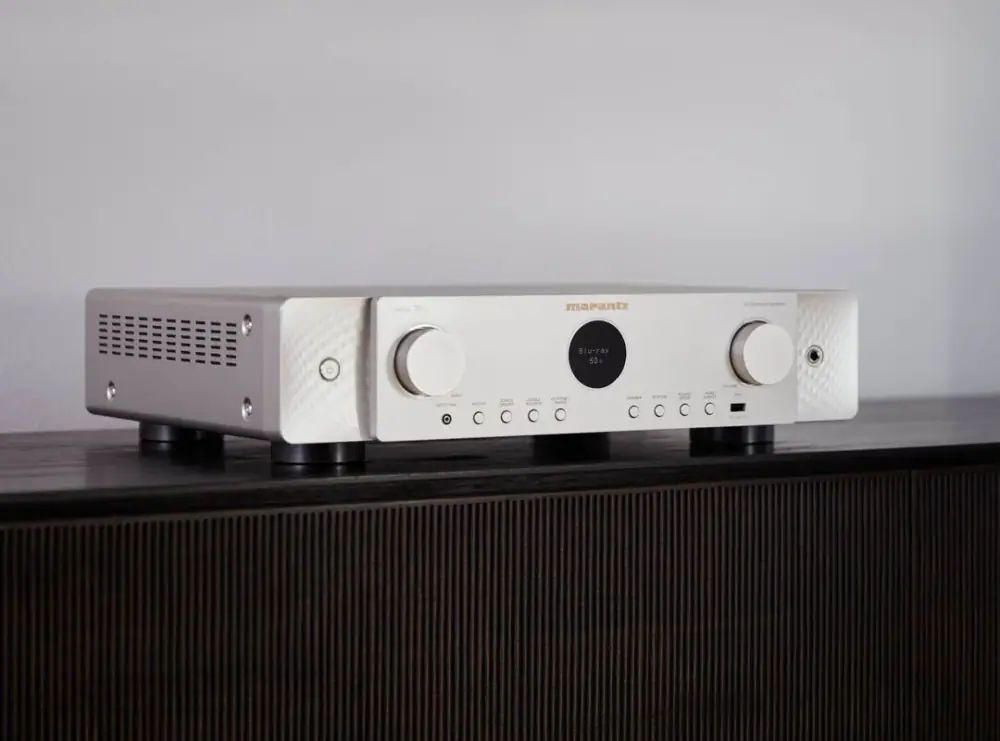

CINEMA 70s
CINEMA 70s features a highly compact slimline design, making it possible to install theaters in places where equipment cannot occupy large amounts of space. With support for modern immersive audio formats and an all-new HD graphical user interface, it delivers refined surround sound performance in a compact chassis where traditional AV receivers won't fit.
MPN: 300619-01-00-101
Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.
How we specify a Houston theater
Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the CINEMA 70s specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.
Specifications
Power Amplifier
| Number of Powered Channels | 7 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 50 W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 70 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | No |
| Bi-Amp Drive | assignable |
Multichannel Surround Technologies
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
|---|---|
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Max Number of Processing (Preamp) Channels | 7.1 |
Inputs Outputs
| Composite In / Out | 0 / 0 |
|---|---|
| Component In / Out | 0 / 0 |
| HDMI In / Out | 6 / 1 |
| Multi-Room Video Out via HDMI | No |
| Analog In / Fixed Level Out | 3 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 1 / 1 |
| Multi-Room Out: analog / digital | 1 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 2 |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 7 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
HDMI
| Total HDMI Inputs / No. Support 8K | 6 / 3 |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 1 / 0 |
| Analog to HDMI Video Conversion | No |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | 8K/60Hz, 4K/120Hz |
| Audio Return Channel | ARC, eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | No |
| Auto LipSync | Yes |
Performance Technologies
| Copper Plated Chassis | No |
|---|---|
| Toroidal Power Supply Transformer | No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | No |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | No |
| Clock Jitter Reducer | No |
Acoustic Room Correction
| Audyssey | MultEQ |
|---|---|
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | No |
| Dirac Live Support | No |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | No |
Music File Support
| Lossy Formats | MP3 / WMA / AAC |
|---|---|
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
| DSD Audio | 2.8 MHz / 5.6 MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
Streaming Services
| HEOS Multi-room and Streaming | Yes |
|---|---|
| AirPlay Audio Streaming | AirPlay 2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix |
| Roon tested | Yes |
Network Connectivity
| Ethernet Ports | Yes |
|---|---|
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration and Control
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
|---|---|
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR Remote App, HEOS |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes /Yes |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | No |
| Control Connectivity | IP Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
Others
| Front Display | port hole OLED |
|---|---|
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
General
| Available Colors | Black |
|---|---|
| Metal Front Panel | No |
| System Remote Control | RC050SR |
| Power Consumption in W | 250 |
| Power Consumption No-Sound (ECO on/off) in W | 30 / 40 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches | 17.4 x 15.1 x 4.3 17.4 x 15.1 x 7.0 17.4 x 14.7 x 4.3 |
| Weight in lbs. | 19.2 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
Features
- Slimline Design
- 7.2 Channels
- 50 Watts per Channel
- 6 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
- 5 Year Warranty
