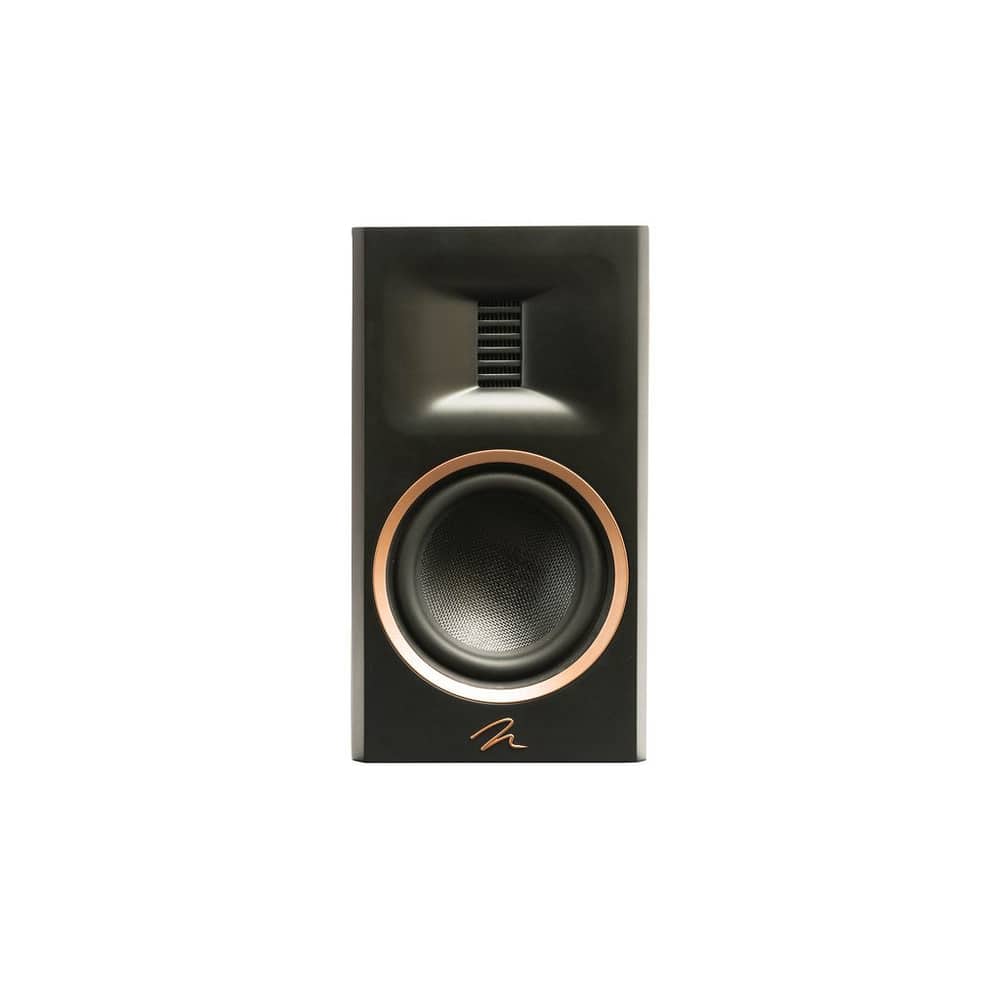

Motion XT B100
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.
How we specify a Houston theater
Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the Motion XT B100 specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 14-1/2" x 8" x 12-1/2"; 36.8cm x 20.3cm x 31.8cm |
|---|---|
| Frequency Response | 45 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 45° |
| Recommended Amplifier Power | 20 - 250 watts |
| Sensitivity | 93 dB |
| Impedance | 4 ohms |
| Crossover Frequency | 2,600 Hz (2-way) |
| High Frequency Driver | 1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm |

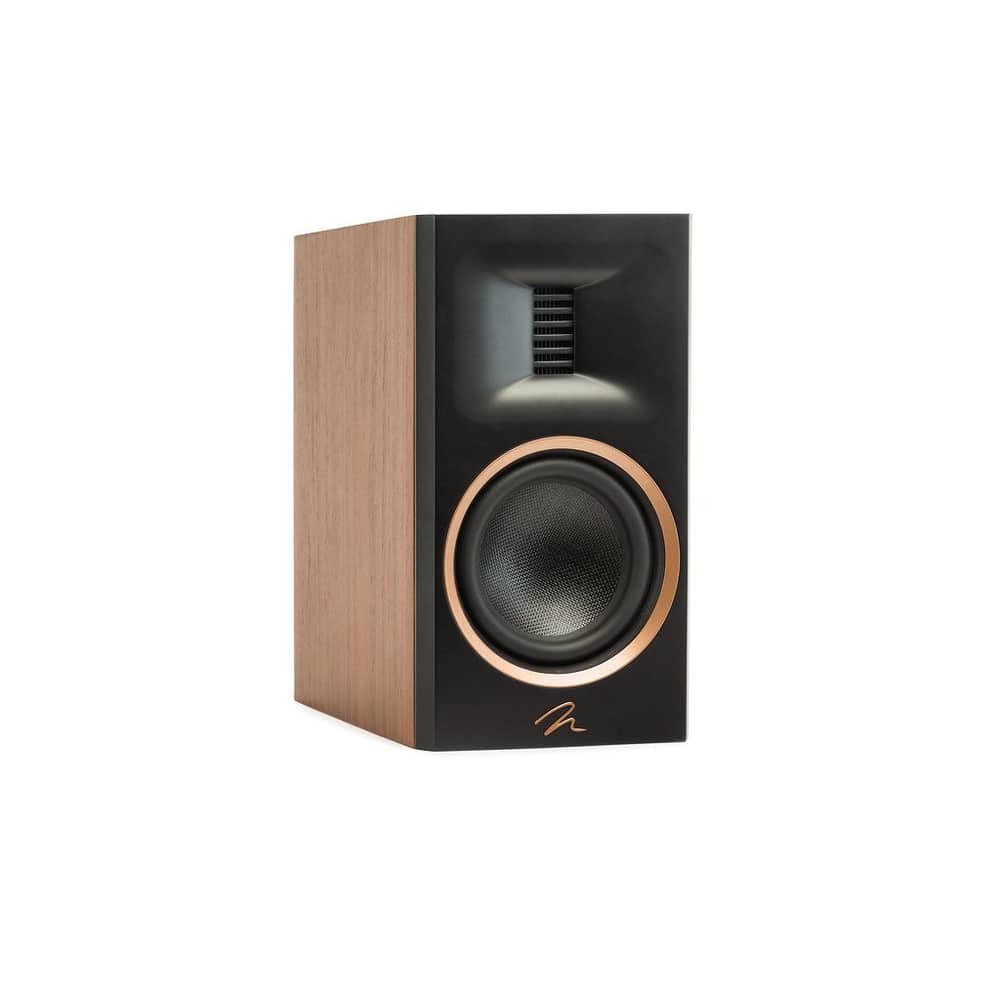

| Mid-Frequency Drivers | 6.5" (16.5cm) Nomex Reinforced Kevlar cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Rear Ported |

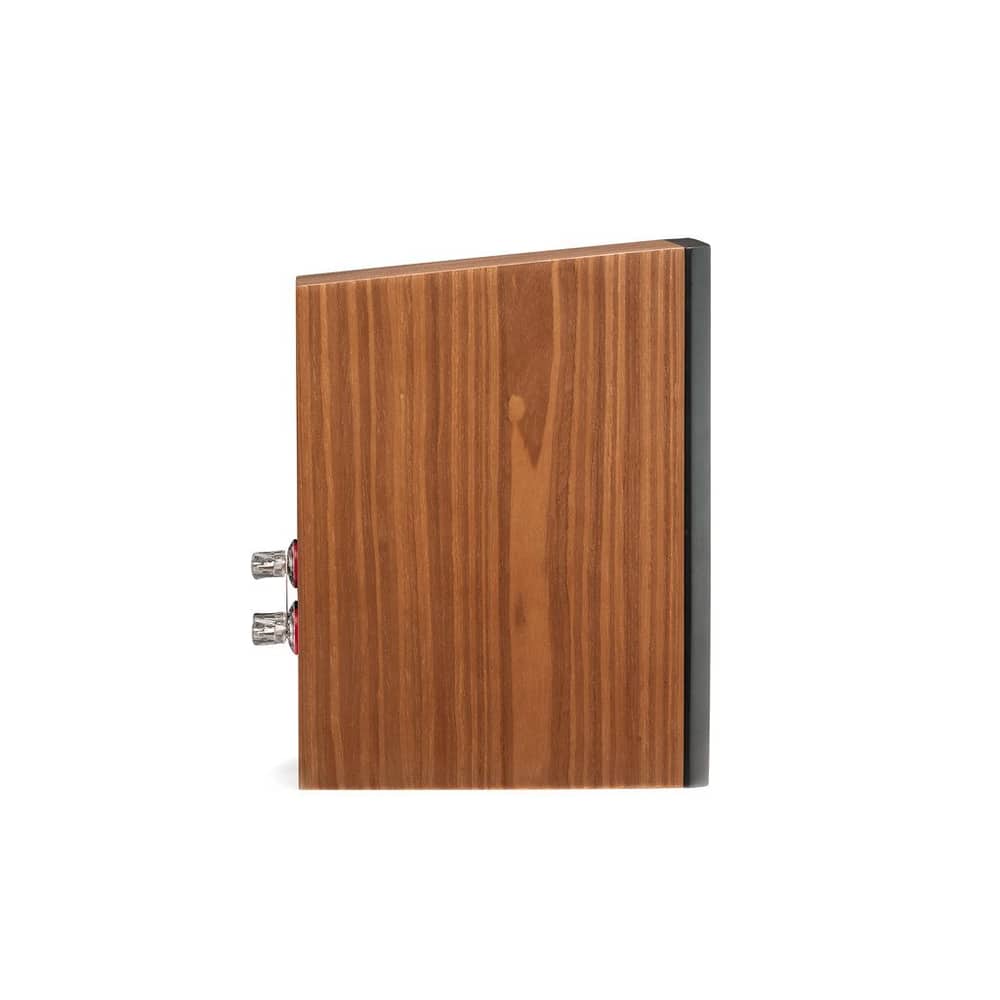

| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 20.5lbs / 9.3kg |

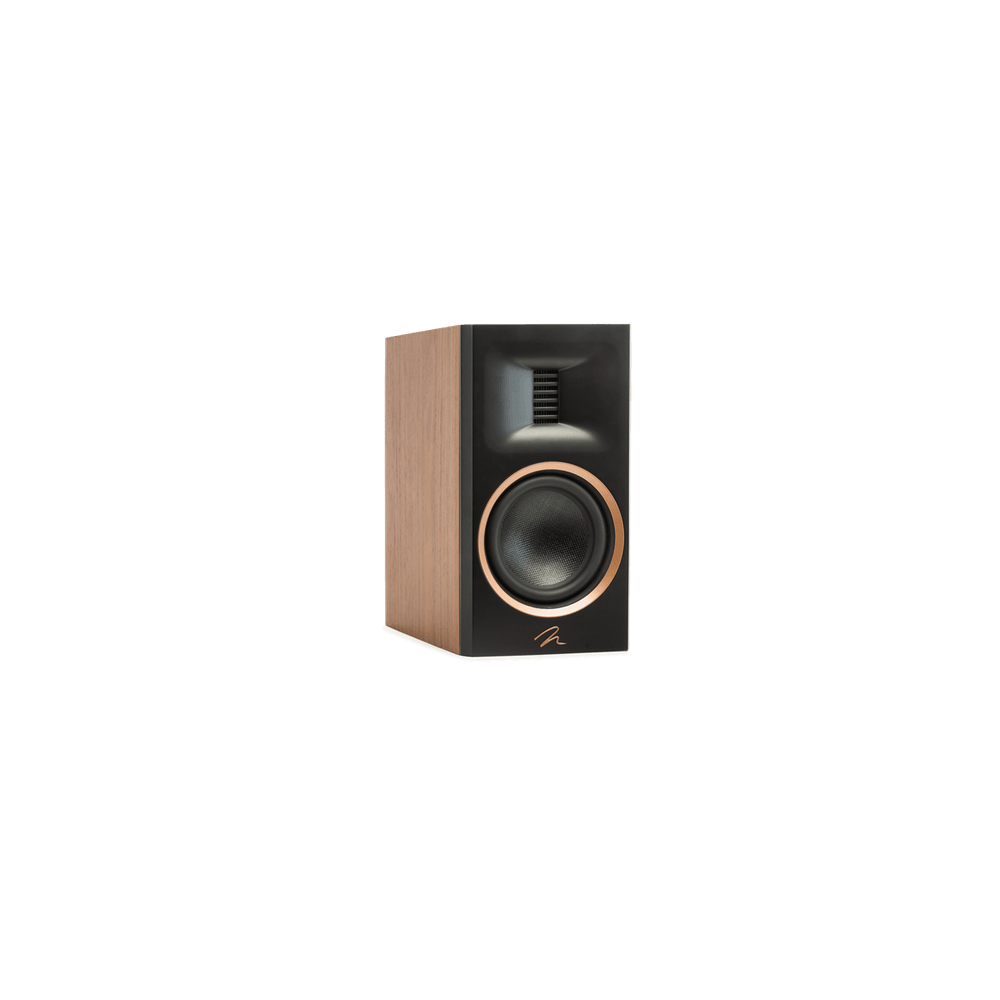

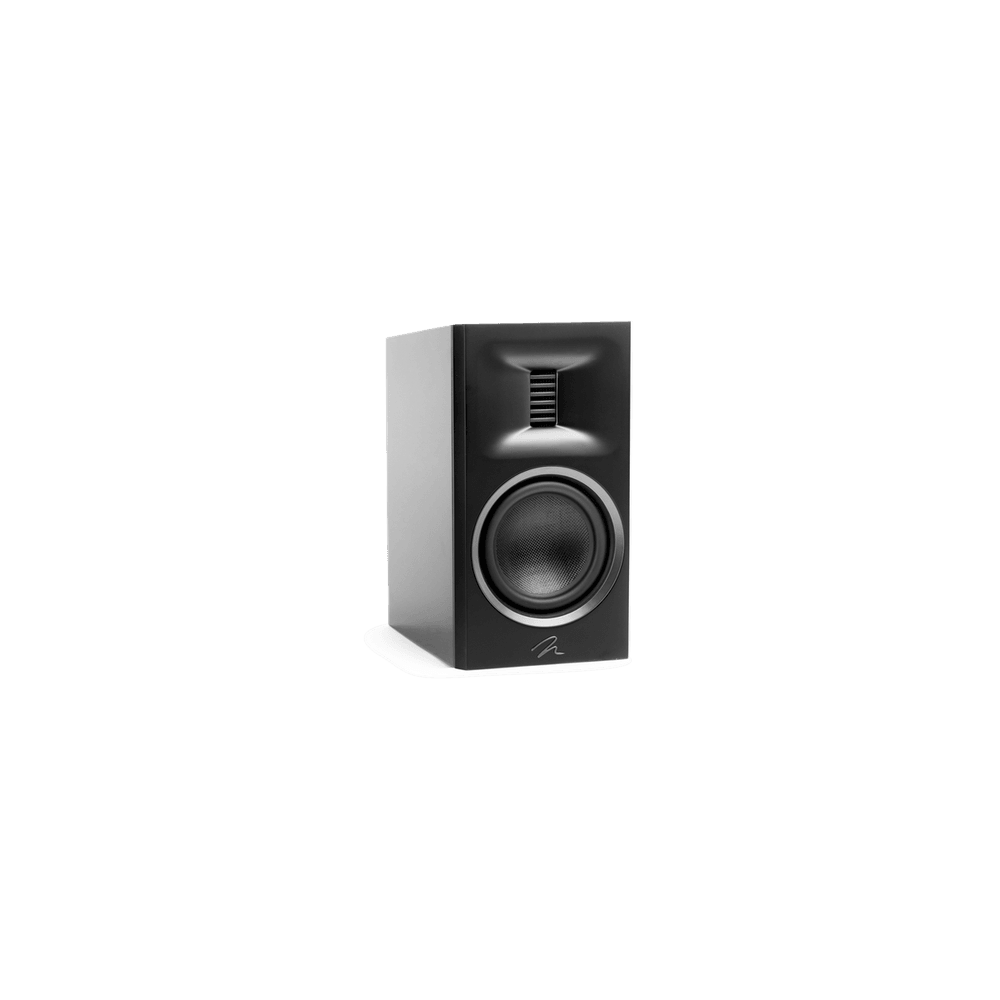

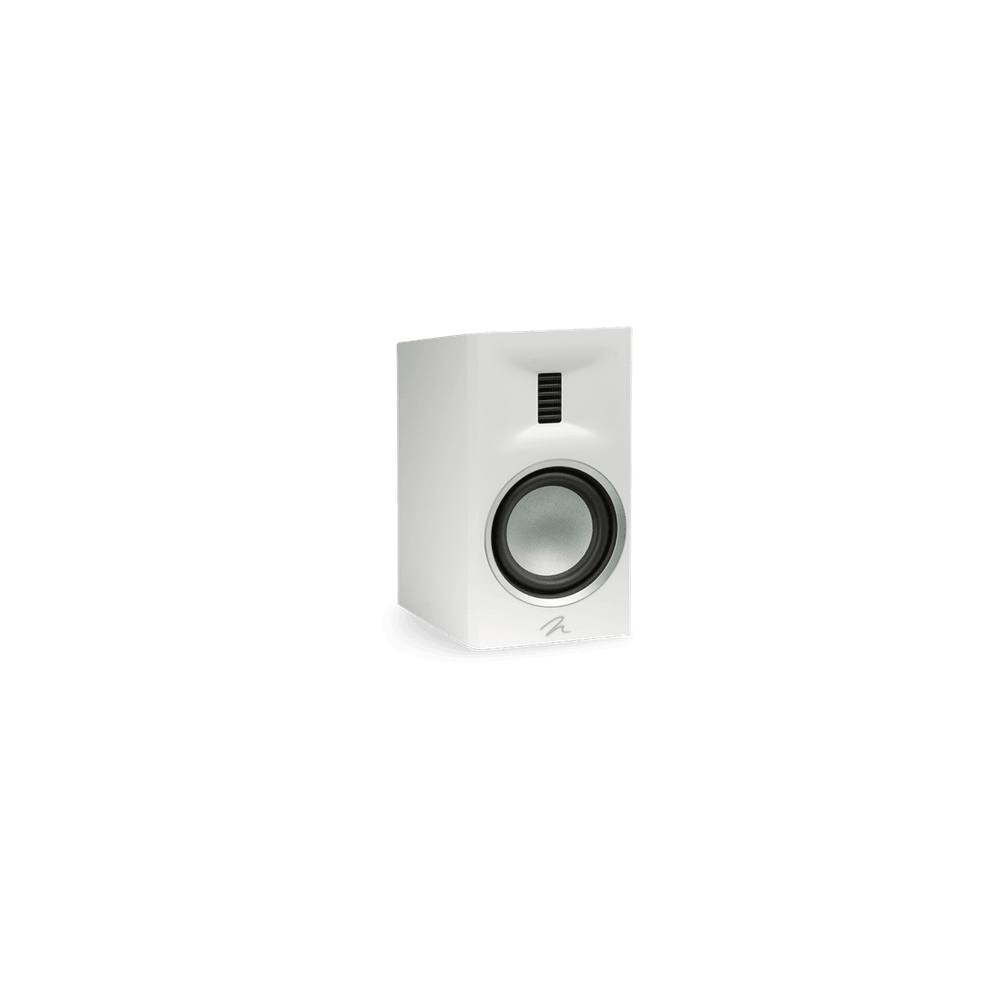

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter XT

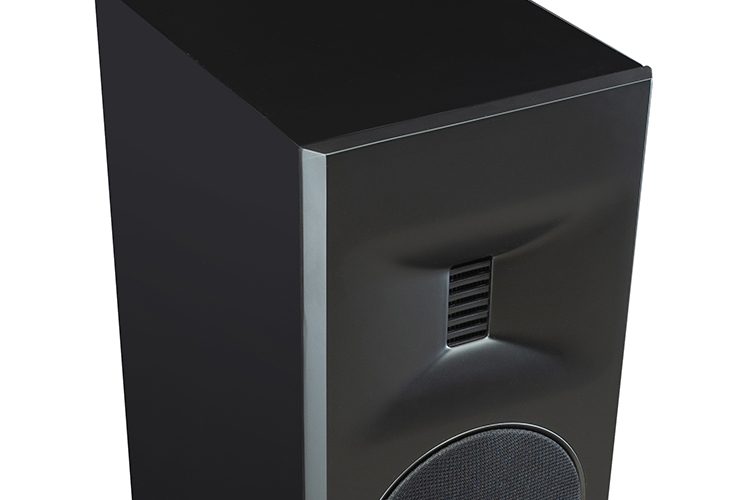

- Folded Motion Waveguide
- Nomex-Reinforced Kevlar Midrange
- Modern Design Featuring
- Stand25
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
