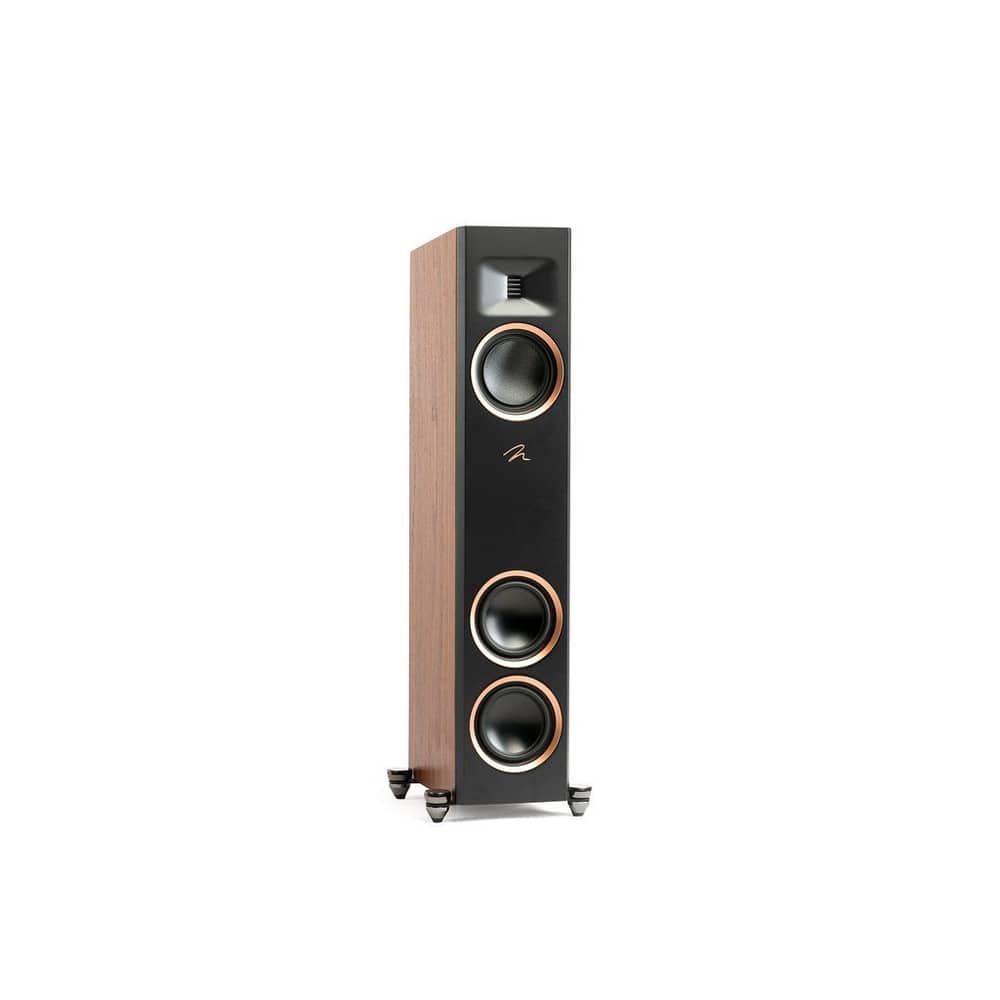

Motion F10
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.
How we specify a Houston theater
Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the Motion F10 specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 38-1/4" x 11-1/4" x 13-1/4"; 97.1cm x 28.6cm x 7.6cm |
|---|---|
| Frequency Response | 38 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 250 watts |
| Sensitivity | 92 dB |
| Impedance | 4 ohms |
| Crossover Frequency | 280 Hz, 3,000 Hz (3-way) |

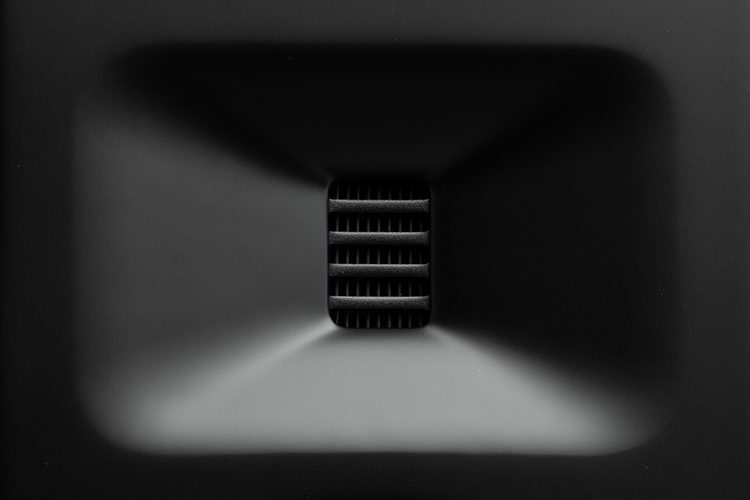

| High Frequency Driver | 1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant sealed chamber format. Unibody cone construction. |
| Low Frequency Driver | 2x 5.5" (14cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Bottom Ported |
| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 50.5lbs / 22.9kg |

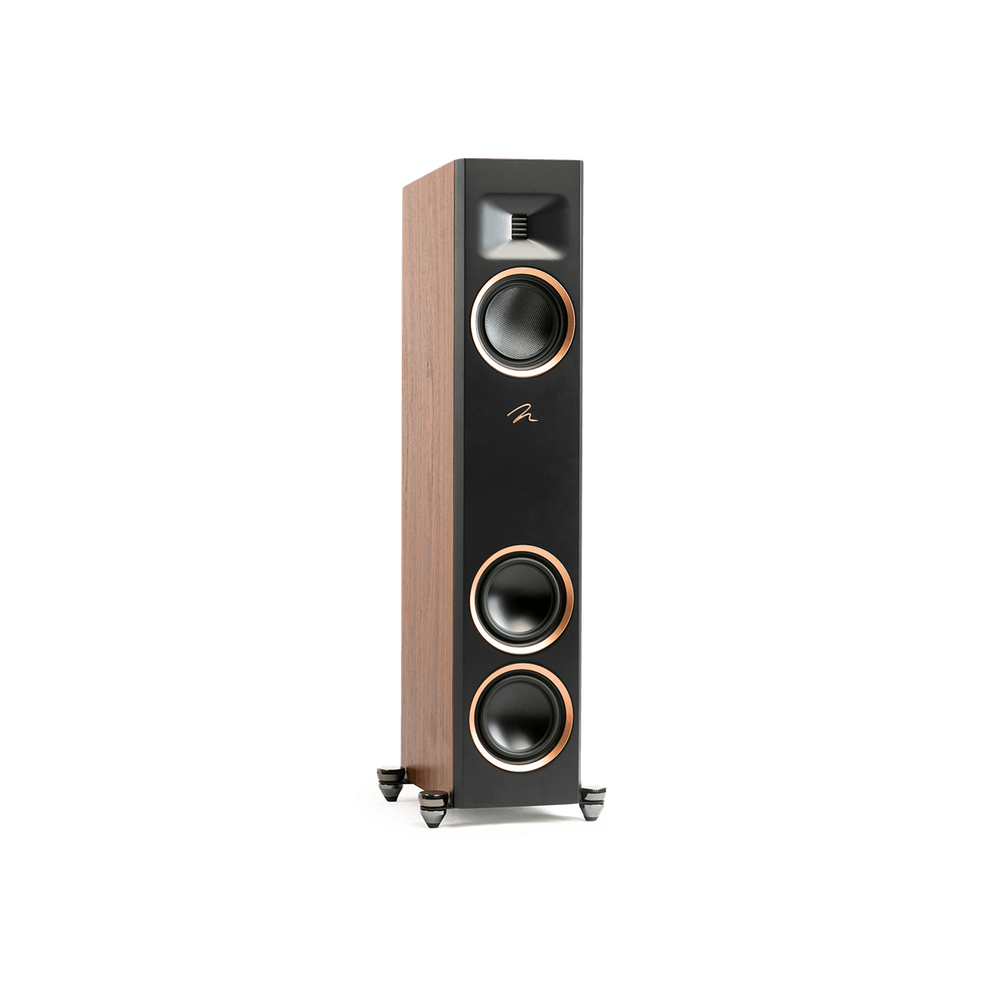

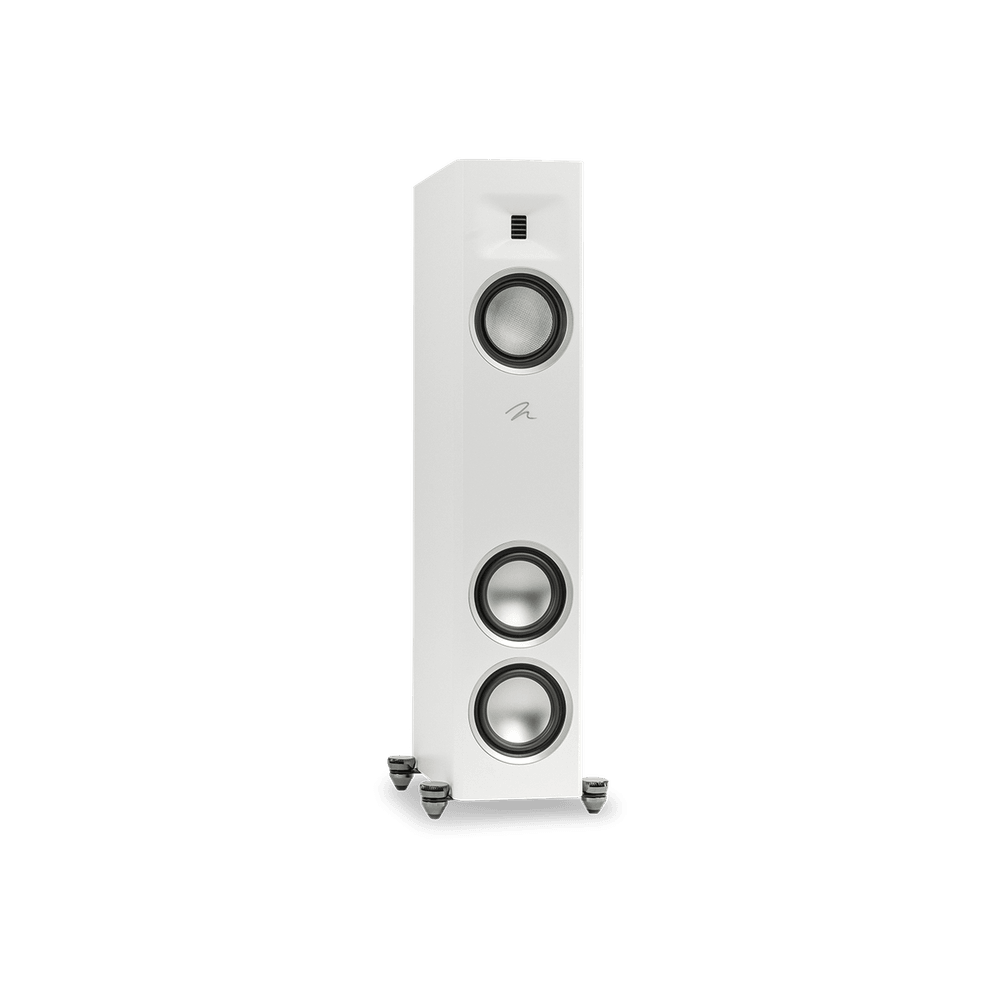

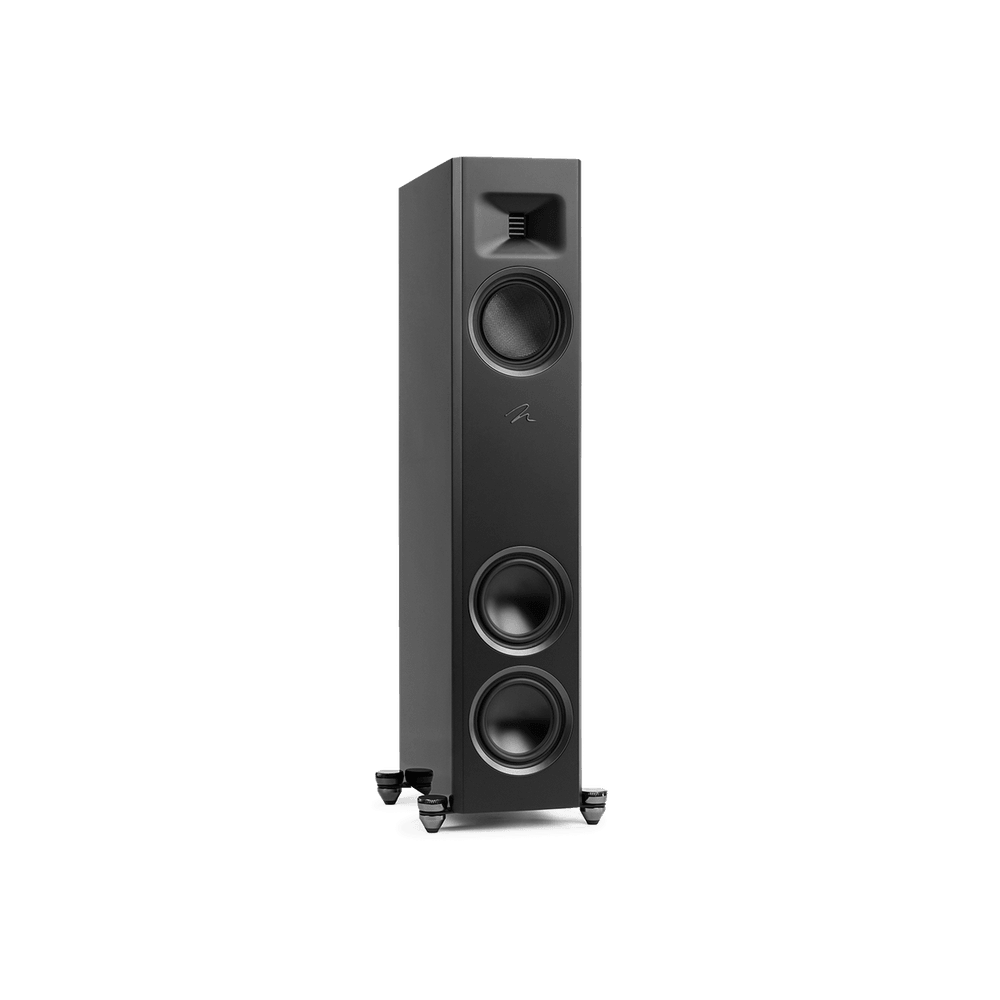

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter
- Folded Motion Waveguide

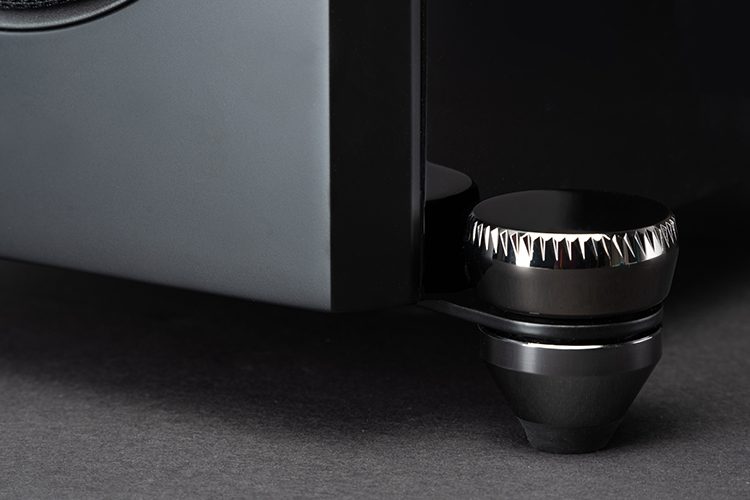

- F.A.S.T. Outrigger Feet
- Woven-Fiberglass Midrange
- Aluminum Bass Drivers
