MartinLogansubwoofers
Dynamo 12
Impeccable Precision. Indisputable Quality.
Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.
How we specify a Houston theater
Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the Dynamo 12 specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.
Specifications
Specifications
| Digital Signal Processing | Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
|---|---|
| Frequency Response | 22-120 Hz ±3 dB (Anechoic via LFE input) |

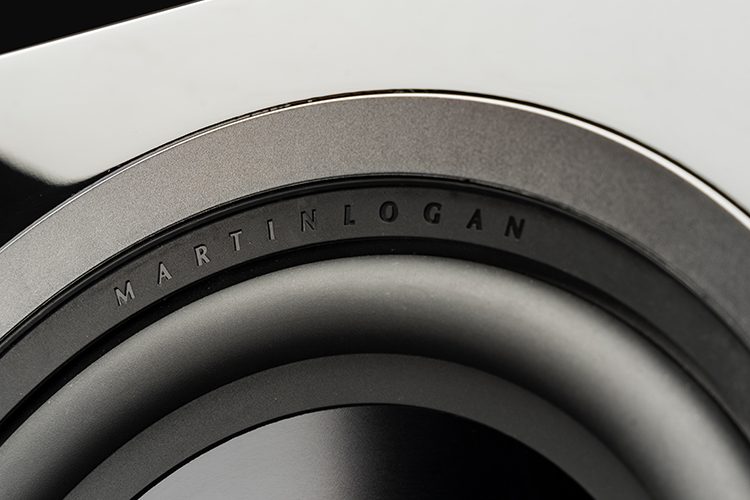

| Low Frequency Transducer | 12" (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket |
| Cabinet | Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle |
| Amplifier | Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous) |

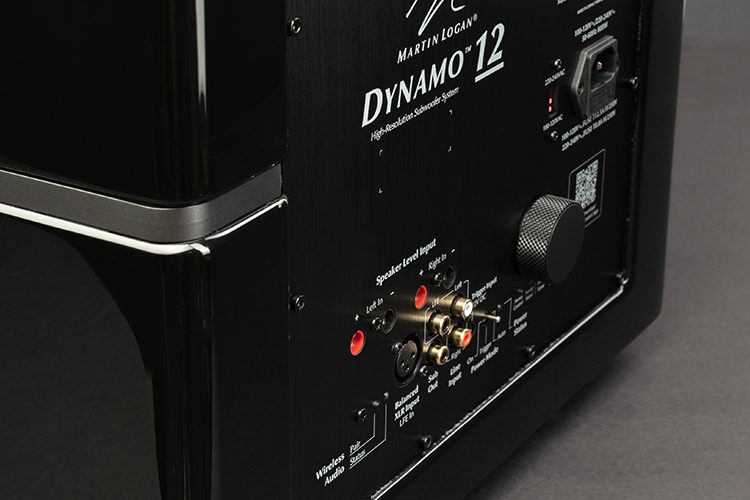

| Controls (Backplate) | Level: Interactive LED Backlit Knob; Tone Sweep: Sweep Start and Pause (with status light); Power Mode: On, 12v Trigger, Auto; Wireless Audio Pairing Button (for included MartinLogan wireless transmitter) |
| Controls (via Bluetooth) | Level: -40 to 12dB (Min-Max); Low-Pass Filter (Frequency): 35-120Hz (1° Increments); Low-Pass Filter (Order): Bypass, Third, Fourth; Phase: 0-180° (1° Increments); Phase (Polarity): Normal, Inverted; Preset Listening Modes: Movie, Music, Night; 20-30Hz Level: ±10dB; Anthem Room Correction (ARC Genesis): On, Off; Tone Sweep (120-20Hz): On, Off, Pause (Frequency) |
| Wireless Inputs | Integrated Wireless Receiver, Wireless Transmitter Included |
| Inputs | Line Level: Left, Right, and LFE XLR: LFE; Speaker Level: Left and Right (requires banana plugs) |
| Power Draw | Max: 800W; Standby (Wireless Disabled): 0.5W; Standby (Wireless Enabled): <2W; *Transmitter and Subwoofer combined |
| Feet | Integrated Anti-Vibration Feet (carpet spikes included) |
| Weight | 61.5 lbs (27.9 kg) |
| Dimensions (H x W x D) | 16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm) |

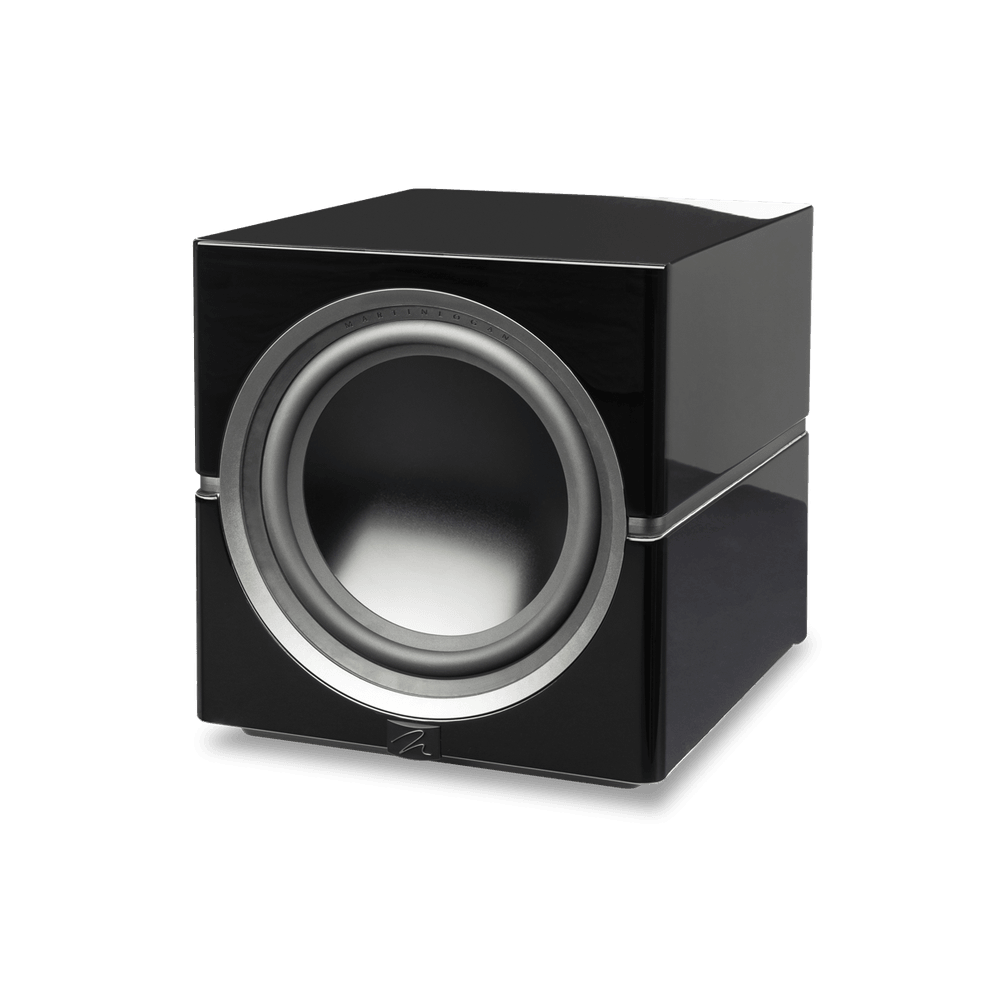

| Finish | Gloss Black |
Features
- Seamlessly Integrating High-Performance Audio with Elegant Design
- Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
- Magnitude MT-1.6kW Amplifier
- Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
- Built-In Wireless Capability
- Sound Structure
- Robust Connectivity
- Reduced Vibration, Enhanced Bass
- Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
- Optimize Bass Performance with Award-Winning Anthem Room Correction
- Incredible Performance Dressed In Black
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
